SigForge user guide

After you read this document, you may want to check SigForge’s developer guide.

What is SigForge

SigForge is scriptable data viewing, data acquisition, and digital signal processing application, running under Windows OS.

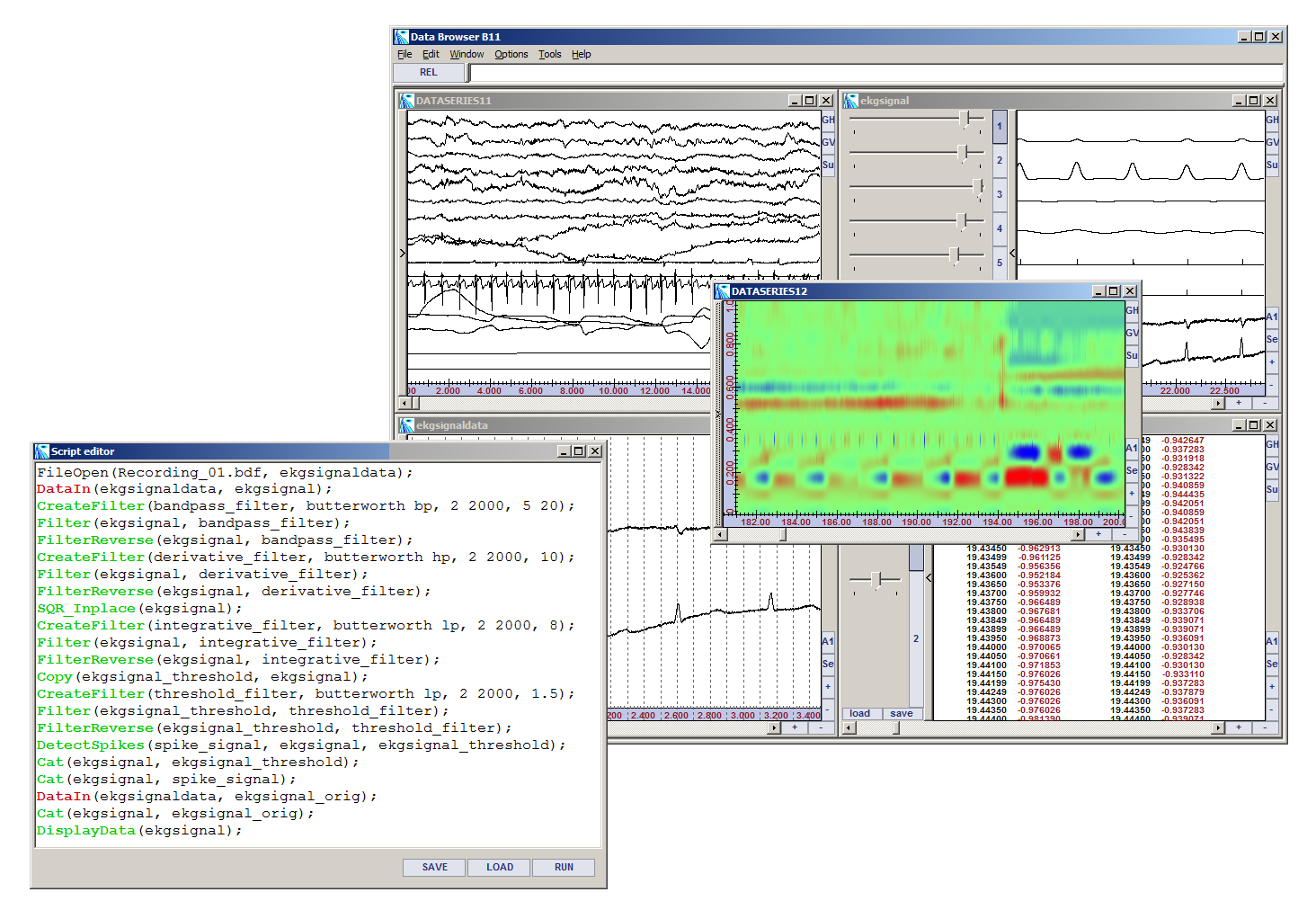

SigForge

The data representations are 2 dimensional data sets, typical to multichannel biological data.

The signal processing algorithms can be executed by running Data Browser scripts.

SigForge is extendible with customized data processing algorithms, and data acquisition modules. This is achieved by SigForge’s plugin-based architecture. In order to use new plugins, those needs to be copied in the proper plugin directories. For more information on developing plugins, please check SigForge’s developer guide.

SigForge’s data engine is also a plugin, which can be used for automation, or can be included into customized applications, allowing one to use the scripts developed in SigForge to run in a specially tailored environment. For more information on this topic, please check SigForge’s developer guide.

SigForge’s menu

File, Edit, Window, Options, Tools, Help

File Menu

Fhe Following are implemented:

"Open data file": opens a data file. Supported formats are:
- EDF (Europian data format)
- BDF (Biosemi data format)
- DAT (DADiSP data format)
"New script window": opens a new script editor window

Edit Menu

Not implemented.

Window Menu

Works as a classical Windows OS MDI (Multi document interface) menu, letting the user to

switch between wopened windows,
tile them horizontally,
tile vertically,
cascade them.

Options, Tools, Help Menus

Not implemented.

SigForge data providers

SigForge can have its data from its data providers. These can be:

Data File codecs, supporting the following file types: EDF, BDF or DADiSP dat files. This type of provider opens the file, and makes its whole content available at once.

DATA FILE CODEC	EXTENSION	USE IN SCRIPTS
EDF	.edf; .edfp	1
BDF	.bdf	4
DADiSP	.dat	3

Data Acquisition devices. In this case, the data is streaming, it is arriving continuously, and the resulting data is growing in size as the time passes.

SigForge scripting

SigForge has a basic scripting language working with SigForge’s data representations.

The scripting supports function calls only, operators are not supported.

Data representation

SigForge has 2 types of data

data opened and visualized by display windows are persistent: they survive script runs. They are called data.
while running a script, data imported in a script running context are ephemeral: they lives only during script runs. They are called variable.

All data objects are stored in a data list, while all variables are stored in a variable list, and are accessable only from scripts. These lists are global objects. All data in the data list is displayed in SigForge’s windows, and all variables in the variable list are living only during a script call, then the variable list is cleared.

Variables from the variable list can be moved into the data list by displaying them (calling the DisplayData function).

Data objects can be imported, copied into the variable list during a script run by calling the DataIn function.

The script may change that variable, and it may display it. If it is displayed, it means that it is moved back to the data list. In this case it overwrites the data with the same name relyig in the specific display window.

If a variable was not displayed, it will be deleted as the script ends.

As a result all persistent data can be seen in windows, and no invisble memory leak can be produced in this level.

Data and variable both have the following properties:

name
number of channels
horizontal units (usually sec(s))
vertical units (a value for each channel, example mV, 1/s(Hz), etc.)
number of samples (a value for each channel)
sampling rates (a value for each channel)

Script types

Once we press the "Run" button on the script editor window, SigForge will run the script in that window. The script may

finish completely after its last function returns
or it may trigger an interval, which will re-run a portion of the script periodically. See Interval() function. The variables living in a script running context will not outlive the interval’s execution end, therefore any information needed to be available for re-entering intervals, needs to be persisted in a data, usually called as history data.

Function types

Functions may work with

data
variable
both data and variable

Functions may be simple, or real-time.

Simple functions are working on whole or specified parts of a data or variable
Real time (RT) functions are working with data provided by data acquisition devices, which are continuously growing in size. They are intended to process only the newly arrived data chunks. In order to do this, they need a history data as a parameter, in order to persist the information needed for the signal processing (at least the last position of the processing, but possibly more). They are working usually with data parameters, but not necessarily. RT functions are marked with the _RT characters.

While RT functions are just simple functions with a history data parameter, in any other aspect they are the same, and they are distinguished by their intended usage only, this categorization is important because only RT functions can process effectively streamed data.

Syntax

Basic function call:

function1(param1, param2, ...);

Most functions are working with variables or data parameters, without a return value, but some functions may return plain text results.

function1(function2(param1, ...), param2, ...);

Some functions may have a body:

function1(...)
{
    function2(...)
};

This may be useful if a block needs to be executed multiple times (loop), or after a timeout, or periodically (interval).
Note that in the basic case the script is not reaching its end, therefore all the variables created till the execution of the block will be available, while in case of a timeout or an interval the variable list will be cleaned before the execution reaches the block.
As a result, all timeouts and intervals are starting with a clean context (empty variable list).

All the parameters are plain text strings, only the actual function decides how to interpret them.

The parameters are separated by commas.

There is a maximum number of 8 parameters. Therefore some functions may interpret one single parameter as 2 real parameters, like param2 and param3 in the example bellow:

function1(param1, param2 param3, param4, ...);

Script editor window

SigForges’s script editor is a text editor with a basic syntax highlight.

Scripting window

Scripting functions delivered with SigForge and its basic signal processing plugins

SigForge comes with a basic set of digital signal processing and helper functions:

DisplayData

Works with variable and data. Moves the specified variable from the variable list into the data list, and displays its content in a display window jus as a data file would be opened.

Syntax: DisplayData([var_name], [fit_width], [display_type], [offset_setting], [other_setting])

Parameters

var_name: the variable name what we want to display in a display window.
fit_width: optional. Defaulted to false. Set to "true" or "fit_width" will fit all the data into the window.
display_type: optional. Defaulted to basic multiline display ("multiline"). It can have the following other values:
- multiline: data is displayed as multiple series of lines
- 2D_map: data is displayed as a heatmap
- 2D_map_surface: data is displayed as a heatmap with map contour lines
- value_list: data is displayed in a table of values
offset_setting: optional. Defaulted to ("A1"). It can have the following other values:
- N: no extra offsets are set, only fixed offsets to all channels proportional to their channel index.
- A1: offsets are approximated for all channels with algorithm 1 to fit into screen one channel after another.
- A2: offsets are approximated for all channels with algorithm 2 to fit into screen one channel after another.
- B: the zero coordinate is set to be at the bottom of the y axis for all the channels. Useful for spectrums.
- C: the zero coordinate is set to the middle of the y axis.
other_setting: optional. Defaulted to display without grids, using antialiased lines with width 1. It is a 4 digit setting, the first digit standing for the horizontal, whilest the second for the vertical grid behaviour. The third stands for line drawing style, and the fourth for the line width.
- first 2 digits:
  - 0 no grid are displayed
  - 1 major grids are displayed only
  - 2 both major and minor grids are displayed
- 3rd digit:
  - 0 antialiased (default)
  - 1 normal line
- 4th digit: line width in pixels

Note: Horizontal grids can only be displayed in the cases when all the channels have a common y axis. This may be the case if only one channel is displayed, or either the B or C offset settings are used.

Returns

Example

CreateSine(sinewave, 10000 10000, 1000 1000, 250);
MeanSpectrum(sinewave, amp_normalized,
             CopyForAllChannels(sinewave, 1),
             CopyForAllChannels(sinewave, 1), ampn);
DisplayData(amp_normalized, fit_width,, B, 21);

Data display’s features

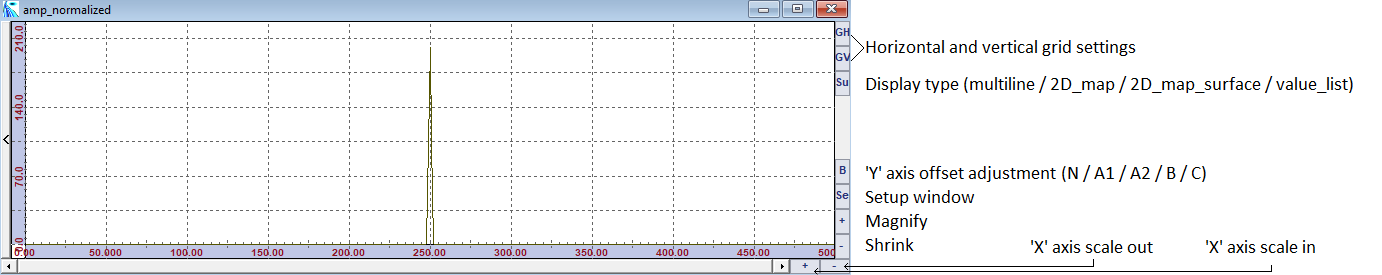

Displaying spectrum

Note: heatmap views are working slowly if the data has thousands of channels (rows).

Data display’s Settings window

Visible channels can be set up by using the Settings window of the display window. Additional information is also accessible here:

channel labels
horizontal units
vertical units
data length

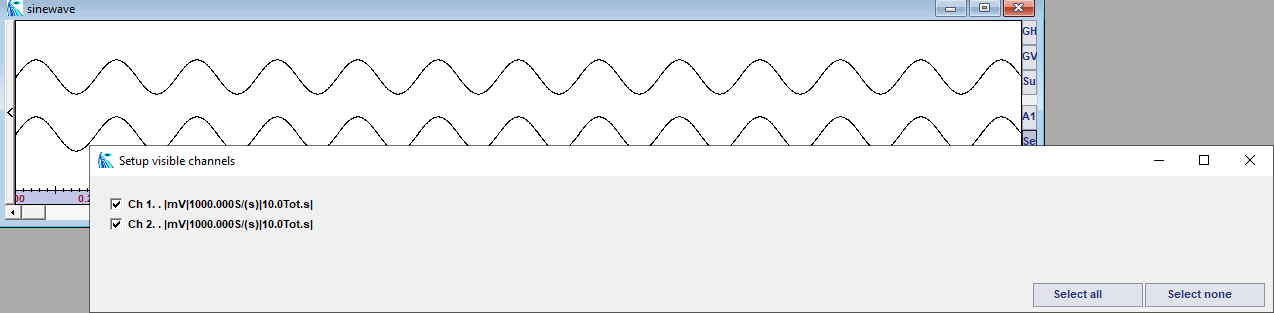

Settings window

In the abouve settings window the visible channels of a data with 2 channels can be set. The data has no labels. Vertical units are in mV, the sampling rate is 1000 Samples per second, and the data length is 10 seconds.

Data display’s relative scaling of y axis

Settings window

By clicking the bar on the left of the display window, a panel with sliders can be shown. By adjusting the sliders, a relative scaling of the y axis of the corresponding channel can be achieved.

DisplayData’s window management functions

Syntax: DisplayData(manage_windows, [managing_action], [target_window])

Parameters

managing_action: can have the following values:
- tile_horizontally
- tile_vertically
- cascade
- maximize
target_window: optional. In case of maximize, the window which needs to be maximized

DisplayData’s scaling functions

Syntax: DisplayData(scale_window, [scaling_action], [target_window])

Parameters

scaling_action: can have the following values:
- horzontally_in: scales the x axis in
- horzontally_out: scales the x axis out
- reset_horzontal: resets the scaling to default for x axis.
target_window: the window which going to be scaled

Note: scaling actions are cumulating. If you keep a window opened, then running a script multiple times will scale your window more and more. You need to reset the scaling if you want to avoid the cumulative effect.

Example

CreateSine(sinewave, 10000, 1000, 30);
DisplayData(sinewave);
for (sine_frequency, 30, 190){
    AppendSine(sinewave, 1000, Iterator(sine_frequency));
};
RefreshDataWindow(sinewave, true);
DataIn(sinewave, sinewave_, 1);

FullSpectrum(sinewave_,
             fullspectrum,
             CopyForAllChannels(sinewave_, 1),
             5 200);
DisplayData(fullspectrum,,2D_map);
BindScrolling(sinewave, fullspectrum);
DisplayData(manage_windows, tile_horizontally);
DisplayData(scale_window, reset_horizontal, fullspectrum);
DisplayData(scale_window, horzontally_out, fullspectrum);
DisplayData(scale_window, horzontally_out, fullspectrum);

CreateSine(sin_1, 10000, 1000, 26 6);
CreateSine(sin_2, 10000, 1000, 31 11);
DisplayData(sin_1);
DisplayData(sin_2);
BindScrolling(sin_1, sin_2);
DisplayData(manage_windows, tile_horizontally);

Add

In progress - Final - Checked

Works with variable. Adds the second variable to the first variable.

Syntax: Add([var_name_1], [var_name_2])

Parameters

var_name_1: the first variable name to which we add the second variable
var_name_2: the second variable what we add to the first variable

Returns

AlterSignal

Works with data. It alters a data’s values by a single value by adding it to every value.

Syntax: AlterSignal([data_name], [value])

Parameters

data_name: the name of the data in the data list
value: the value we want to add to the data’s values

Returns

Append

In progress - Final - Checked

Works with variable. Appends the source variable to the end of the destination variable. As a result, the number of channels will not change, while the number of samples in affected channels will be the sum of the input variable’s number of samples.

Syntax: Append([dst_var_name], [src_var_name])

Parameters

dst_var_name: the destination variable name to which we append the source variable
src_var_name: the source variable name what we append to the destination variable

Returns

AppendSine

In progress - Final - Checked

Works with data. Appends sine wave(s) to the end of the data given with the data’s sampling rate.

Syntax: AppendSine([data_name], [number_of_samples], [frequencies])'

Parameters

data_name: the data name which we want to add sine wave(s).
number_of_samples: the number of samples what we want to add.
frequencies: the list of the frequencies of the sine waves to be added. It could be one or more frequency.

Returns

Ascii

LoadAscii

Works with variable. Loads a tab (\t) and new line (\n) delimited ASCII file, and stores it in a variable.

Note: the speed is ~50 kBytes / sec. While loading a file, SigForge is unresponsive.

Syntax: LoadAscii([var_name], [ascii_file_path], [is_fast])

Parameters

var_name: the name of the variable where we load the data from the ASCII file
ascii_file_path: the full path of the ascii file with it’s name and extension
is_fast: if set to "true" or "fast", the function will perform faster (~4 MBytes / sec), but it might loose some of its precision.

Returns

Example

LoadAscii(vec1, c:/vec1.ascii);
DisplayData(vec1);

Note: surface views are working slowly if the data has thousands of channels (rows).

WriteAscii

Works with variable. Writes a variable into a tab (\t) and new line (\n) delimited ASCII file.

Syntax: WriteAscii([var_name], [ascii_file_path])

Parameters

var_name: the variable name what we want to write to the ASCII file
ascii_file_path: the name of file with the path. We can use relative (relative from the binary of the program) or absolute file path.

Returns

Example

FileOpen(c:\data_with_2_channels_and_6_samples_each_channel.bdf, data1);
DataIn(data1, vec1);
WriteAscii(vec1, c:/vec1.ascii);

The content of the file will be like:

-0.9360910      -0.9343029      -0.9289384      -0.9295345      -0.9337068      -0.9384752
-0.8884073      -0.8812547      -0.8776784      -0.8764864      -0.8741022      -0.8741022

BindScrolling

Binds the scrollbars of a data window with anther data window’s scrollbar.

Syntax: BindScrolling([src_data_name], [target_data_name], [binding_action])

Parameters

src_data_name: the source window’s data name
target_data_name: the target window’s data name. The target window will be scrolled every time the source window is scrolled.
binding_action: optional. If set to false, the binding will be removed. Otherwise, or left unset, the binding will be performed if it’s possible.

Returns

Note: If circular redundancy is detected, the function throws an error.

Example

Cat

Works with variable. Concatenates a variable with another variable’s rows by extending the original variable with the rows of the other, resulting the new number of rows to be equal with: original rows + added rows.

Syntax: Cat([variable_name], [variable_name_tocat])

Parameters

variable_name: specifies the name of the variable which is going to be extended with new rows
variable_name_tocat: the name of the variable which’s rows are going to be concatenated to the variable specified by the variable_name parameter.

Returns

Example

CatStrings

In progress - Final - Checked_

Cats all parameters into one string up to a maximum of 8 strings.

Syntax:

CatStrings([str_1], [str_2], [str_3], [str_4], [str_5], [str_6], [str_7], [str_8]);

Parameters

str_1: not optional
str_2: not optional
str_3, str_4, str_5, str_6, str_7, str_8: optional

Returns

conacatenated string

Example

CatToFile

In progress - Final - Checked

Works with variable. It takes out a sample of data with the specified index from each channel from the input variable. The function will put the extracted sample data to the output file. If the input has more than one channel it converts the extracted data to one channel and the channel will have as much sample data as there are channels of the input variable.

Syntax: CatToFile ([in_var_name], [sample_index], [file_name], [name])

Parameters

in_var_name: the name of the input variable
sample_index: the sample index of the extracted data. The index starts from 0.
file_name: the name of the file where we want to save the data.
name: Optional. You can name the data in the file.

Returns

CleanupCodec

In progress - Final - Checked

Works with data. Frees up the data’s memory. If you use big data and you don’t need it any more then you can free the memory what the data use.

Syntax: CleanupCodec([data_name])

Parameters

data_name: the name of the data in the data list.

Returns

CleanupFirstCodec

In progress - Final - Checked

Works with data. Frees up the first data’s memory from the data list. See [CleanupCodec].

Syntax: CleanupFirstCodec([dummy])

Parameters

dummy: a dummy string for example 0.

Returns

CleanupSignal_Spike

In progress

Works with variable.

Syntax: CleanupSignal_Spike([var_name], [spike_var_name], [spike_radius], [a_2])

Parameters

var_name: the name of the variable on which we want to run the function
spike_var_name: the name of the spike variable
spike_radius: the radius of the spike
a_2: not in use

Returns

CleanupSpikes

In progress

Works with variable.

Syntax: CleanupSpikes([var_name], [spike_var_name], [spike_radius], [density_threshold])

Parameters

var_name: the name of the variable on which we want to run the function
spike_var_name: the name of the spike variable
spike_radius: the radius of the spike
density_threshold:

Returns

Copy

Works with variable. Copies a source variable into a newly created destination variable.

Syntax: Copy([dst_var_name], [src_var_name])

Parameters

dst_var_name: destination variable name what we create to copy the source data.
src_var_name: source variable name where we want to copy data to destination.

Returns

CopyForAllChannels

Works with variable. Multiplicates the text passed as second parameter, times the number of channels of the variable passed as first parameter.

Syntax: CopyForAllChannels([var_name], [text])

Parameters

var_name: the variable name where we count the channels
text: the text which is going to be multiplicated

Returns

A text containing the [text] parameter, concatenated multiple times, separated by space(s).

Example

CopyForAllChannels(variable_with_4_channels_and_1000_samples_each, 9);

Results in the following text: "9 9 9 9"

Cover1

In progress - Final - Checked

Obsolate Works with variable. Creates an envelope curve of the input signal, and replaces the signal with the enevelope.

Syntax: Cover1([var_name])

Parameters

var_name: the variable name

Returns

CreateVariable

In progress - Final - Checked

Works with variable. Creates a variable with a given number of samples and given sampling rates.

Syntax: CreateVariable([var_name], [nr_samples], [sampling_rates])

Parameters

var_name: the name of the signal
nr_samples: a list containing the numbers of samples for each channel of the signal
sampling_rates: a list containing the the sampling rates

Note: the size of the nr_samples and sampling_rates lists must match, and will determine the number of channels in the output variable.

Returns

CreateSine

In progress - Final - Checked

Works with variable. Creates a sine wave with a number of samples in a given sampling rate and frequency in the variable list with the given name. In the number_of_samples_list and sample_rate_list you may provide a single number, or a list of numbers separated by spaces. The size of this two lists must be equal, and the size of the lists determine the number of channels. In the frequency_list you may also provide a single floating point number, or a list of numbers separated by spaces. Each frequency provided will appear in the output variable as a frequency component, resulting a signal containing a combination of sine waves of different frequencies.

Syntax: CreateSine([var_name], [number_of_samples_list], [sample_rate_list], [frequency_list])

Parameters

var_name: the variable name where we store the sine wave
number_of_samples_list: a list containing the number of samples for each channel
sample_rate_list: a list containing the sampling rates of the sine waves
frequency_list: a list of numbers determining the frequency components of the output variable

Returns

Examples

Regular sine curve

CreateSine(s1, 10000, 1000, 10);
DisplayData(s1);

Sine curve with 2 channels and multiple frequency

CreateSine(s1, 10000 10000, 1000 1000, 10 5);
DisplayData(s1);

CreateSpline

In progress - Final - Checked

Works with variable. Creates an approximate curve from the given data (x and y coordinates) with spline interpolation method. The created variable will have the given number of samples, and the sampling rate of the data will be 1. As a result, x coordinates will correspond the data indexes.

Syntax: CreateSpline([var_name], [samples], [x_coord_values], [y_coord_values])

Parameters

var_name: the variable name where we store the created spline
samples: the number of samples in each channel
x_coord_values: the list of x coordinates
y_coord_values: the list of the given data values

Returns

Example

CreateSpline(spline, 100, 0 7 29 50 99, 15 0 10 5 10);
DisplayData(spline, fit_width);

The result will be a variable with one channel and the channel has 100 samples. The 0 7 29 50 99 are the x coordinates of the given data and the 15 0 10 5 10 are the values (y coordinates) of the data. The function will calculate the intermediate datas with spline interpolation.

CreateVector

Works with variable. Creates a vector (a variable with a dimension of N x 1).

Syntax: CreateVector([var_name], [element1 element2 …])

Parameters

var_name: the output variable name
element1 element2 …: elements separated with spaces

Returns

Example

DataAq

In progress

Works with data acquisition devices and save data to the data list and the given file type.

Syntax: DataAq([dataAq_device_type], [dataAq_params], [sampling_rates], [gain], [physical_mapping], [milliSeconds_to_read], [fileCodec_type], [file_name], [signal_name])

Parameters

dataAq_device_type: the data acquisition device type
dataAq_params: the data acquisition device parameters
sampling_rates: set the sampling rates per channel (2000 2000 if you have 2 channels)
gain: set the gain per channel (1 1 if you have 2 channels)
physical_mapping: map the physical channels with the channels in the data
milliSeconds_to_read: set how many milliseconds to read from the given device
fileCodec_type: set the file codec type (4: bdf). See [DataTypes].
file_name: the name of the file where the data will be stored
signal_name: the name of the data name. This is optional, but if you don’t set you can’t refer to the data in the future.

Returns

DataAq

DataIn

Works with data → variable. Copies the content of a data object into a newly created variable, and adds the new variable to the variable list.

Syntax: DataIn([data_name], [variable_name], [active_channel_list])

Parameters

data_name: data object name
variable_name: variable name where we store data
active_channel_list (optional): if you don’t use by default copy all active channels. If you use this might be a list of channel indexes counted from 1 marking the active channels needs to be copied into the new variable. It will copy the same order the channels as in the source no matter what is the order you add.

Returns

Example

DateAndTime

In progress - Final - Checked

Makes a string from the actual date and time in the YYYY-MM-DD_HH-MM-SS format. You can add prefix and/or suffix to the string (prefix)YYYY-MM-DD_HH-MM-SS(suffix).

Syntax: DateAndTime([prefix], [suffix])

Parameters

prefix (optional): a string what you want to add before the actual date and time format
suffix (optional): a string what you want to add after the actual date and time format.

Returns

Returns with a string with the actual date and time optionally with prefix and/or suffix.

Examples:

DateAndTime();                -->       2020-10-14_13-01-12
DateAndTime(prefix)           --> prefix2020-10-14_13-01-12
DateAndTime(, suffix)         -->       2020-10-14_13-01-12suffix
DateAndTime(prefix, suffix)   --> prefix2020-10-14_13-01-12suffix

DeleteData

In progress - Final - Checked

Works with variable. Deletes a variable from the variable list.

Syntax: DeleteData([in_var_name])

Parameters

in_var_name: the name of the variable to be deleted

Returns

DataDelete

In progress - Final - Checked

Works with data. Deletes a data from the data list, and also closes its display window. If no parameter is given, all data windows will close.

Syntax: DataDelete([data_name])

Parameters

var_name: optional. The name of the data to be deleted

Returns

Deriv

In progress - Final

Works with variable. The function calculates the signal slope at each point, and replaces the values in the variable datas.

Syntax: Deriv([in_var_name])

Parameters

in_var_name: the name of the variable

Returns

DerivReal

In progress - Final

Works with variable. The function calculates the input variable signal slope at each point, and add a new variable to the variable list with the given name.

Syntax: DerivReal([out_var_name], [in_var_name])

Parameters

out_var_name: the name of the output variable
in_var_name: the name of the input variable

Returns

DetectSpikes

Works with variable inputs and outputs. Detects spikes in a signal, based on a threshold signal, and outputting a newly created signal filled with zeros by default, and marker values where spikes were detected.

Syntax: DetectSpikes([dst_name], [spike_signal], [threshold_signal], [marker_value], [refractory_period], [previous_spike_reference_ratio], [previous_spike_reference_attenuation])

Example

FileOpen(Recording_01.bdf, ekgsignaldata);
DataIn(ekgsignaldata, ekgsignal);
CreateFilter(bandpass_filter, butterworth bp, 2 2000, 5 20);
Filter(ekgsignal, bandpass_filter);
FilterReverse(ekgsignal, bandpass_filter);

CreateFilter(derivative_filter, butterworth hp, 2 2000, 10);
Filter(ekgsignal, derivative_filter);
FilterReverse(ekgsignal, derivative_filter);

SQR_Inplace(ekgsignal);

CreateFilter(integrative_filter, butterworth lp, 2 2000, 8);
Filter(ekgsignal, integrative_filter);
FilterReverse(ekgsignal, integrative_filter);

Copy(ekgsignal_threshold, ekgsignal);

CreateFilter(threshold_filter, butterworth lp, 2 2000, 1.5);
Filter(ekgsignal_threshold, threshold_filter);
FilterReverse(ekgsignal_threshold, threshold_filter);

DetectSpikes(spike_signal, ekgsignal, ekgsignal_threshold);

Cat(ekgsignal, ekgsignal_threshold);
Cat(ekgsignal, spike_signal);

DisplayData(ekgsignal);

Spike detection

Parameters

dst_name: the name of the output signal the detected spikes will be marked in
spike_signal: the name of the original signal with spikes to be detected
threshold_signal: a signal which serves as a threshold for spike detection
marker_value:
- The spike locations will be marked by this value in the output variable
- Optional. Default value is 1.
refractory_period:
- After a spike was detected, within this period no new spike should be detected. The refractory_period is measured in the spike_signal’s horizontal units (likely milliseconds).
- Optional. Default value is 240.
previous_spike_reference_ratio:
- The new spike, in order to be detected, should be greater than the previous spike multiplied by this ratio
- Optional. Default value is 0.5.
previous_spike_reference_attenuation:
- If there was no spike detected due to a high previous spike amplitude value, then the memorized spike amplitude value is attenuated (lowered) on every evaluation of a new sample by the following equation: previous_spike_amplitude /= 1.0 + previous_spike_reference_attenuation / sampling_rate.
- Optional. Default value is 30.

Returns

DirectRelay_RT

In progress

Works with data. Relays a changing source data (src) to a destination data (dst), potentially passing the actual increment through a processing unit.

Syntax: DirectRelay_RT([src_data_name], [history_data_name], [dst_data_name], [window_milliseconds], [codec_type], [filename], [channels_to_relay], [processor])

Parameters

src_data_name: the name of the source data.
history_data_name: he name of the data where the history of processing is stored. The history data contains at least one row (channel). The size of each row in the history data is equal to the number of channels in the source data. Relaying history is stored in the 0th channel. Every value stored is the sample index where the processing/relaying was left (the last sample index in the source data which was already relayed). Further channels in history data if present, are used by IRuntimeProcessor objects.
dst_data_name: the name of the destination data
window_milliseconds: the output file timewindow
codec_type: the description of the parameter
filename: the description of the parameter…
channels_to_relay: Optional. The channel indexes to relay from src to dst.

Returns

Downsample

In progress - Final

Works with variable. The function reduce the sampling in a given variable with the given ratio.

Syntax: Downsample([in_var_name], [output_var_name], [ratio])

Parameters

in_var_name: the name of the input variable
output_var_name: the name of the output variable
ratio: the down sample ratio. The ratio must be bigger than 1.

Returns

Example

CreateVector(vec, 1 2 3 4 5 6 7 8 9 10);
Downsample(vec, vec_down, 2);
DisplayData(vec, fit_width, value_list);
DisplayData(vec_down, fit_width, value_list);

The output: 1 3 5 7 9

DotDiff

In progress - Final - Checked_

Performs a dot difference of 2 dataseries.

Syntax:

DotDiff([a_outvar], [a_out_ch], [a_lhs], [a_lhs_ch], [a_rhs], [a_rhs_ch])

Parameters

a_outvar: destination variable
a_out_ch: channel index counted from 0 of the dataseries in destination variable
a_lhs: left hand side variable name
a_lhs_ch: channel index of the dataseries in left hand side variable to be substracted from
a_rhs: right hand side variable name
a_rhs_ch: channel index of the dataseries in right hand side variable to be substracted

Returns

Example

CreateSine(sinewave1, 10000 10000, 1000 1000, 30);
CreateSine(sinewave2, 10000 10000, 1000 1000, 3);

CreateVariable(difference, 1 1, 1000 1000);
DotDiff(difference, 0, sinewave1, 0, sinewave2, 1);
DotDiff(difference, 1, sinewave2, 0, sinewave1, 1);

DisplayData(sinewave1);
DisplayData(sinewave2);
DisplayData(difference);

Note: destination variable must be created preamble with proper number of channels.

Spike detection

DownsampleGauss

In progress - Final

Works with variable. The function reduce the sampling in a given variable with the given ratio using a Gaussian curve.

Syntax: DownsampleGauss([in_var_name], [output_var_name], [ratio])

Parameters

in_var_name: the name of the input variable
output_var_name: the name of the output variable
ratio: the down sample ratio. The ratio must be bigger than 1.

Returns

Example

CreateVector(vec, 1 2 3 4 5 6 7 8 9 10);
DownsampleGauss(vec, vec_down, 2);
DisplayData(vec, fit_width, value_list);
DisplayData(vec_down, fit_width, value_list);

The output: 1.537738 3.040112 5.000000 6.994827 8.821049

Extract

Works with variable. Extracts a portion of a source variable into a destination variable. The start and length needs to be specified in horiyontal units.

Syntax: Extract([src_name], [dst_name], [units_start], [nr_units])

Parameters

src_name: the name of the source variable
dst_name: the name of the destination variable
units_start: the start sample index from where the extraction should be started
nr_units: the number of samples to be extracted

Returns

Example

CreateVector(vec1, 10 20 30 40 50 60 50 40 30 20 10);
Cat(vec1, vec1);

Extract(vec1, vec2, 1, 7);

DisplayData(vec1, fit_width);
DisplayData(vec2, fit_width);

FileOpen

Opens a file for reading resulting a data, and displays it in a display window. The data is added to the data list.

Syntax: FileOpen([file_name], [data_name])

Parameters

file_name: name of the file
data_name: specifies the name of the data. The file content will be available by using this name when calling the appropriate functions.

Returns

Filters

Filter related script functions.

CreateFilter

Works with variable. Creates IIR filter coefficients, and stores them in a variable.

Syntax: CreateFilter([variable_name], [shape_kind], [order_sampling_rate], [edges], [ripple], [ellipstopbandedge])

Parameters

variable_name: the name of the created filter in the variable list
shape_kind: filter type (Butterworth, Chebyshev, Elliptic) and kind (hp, lp, bp, bs) separated by space(s)
order_sampling_rate: filter order (1, 2, 3) and sampling rate (integer) separated by space(s)
edges: 1 or 2 edge frequencies (double), separated by space(s)
ripple: in case of elliptic filters (double)
ellipstopbandedge: in case of elliptic filters (double)

Returns

Filter

Works with variable. Filters a variable with the specified IIR filter created by the CreateFilter function.

As it is an IIR filter, it induces frequency dependent phase shifts in the signal. These can be shifted back by using a ReverseFilter with the same filter coefficients. Note that by using a ReverseFilter, the frequency attenuations will be summarized.

Syntax: Filter([variable_name], [filter_name])

Parameters

variable_name: the variable name what we want to filter
filter_name: the name of the filter what we created before and want to use

Returns

Example

FilterReverse

Filters a variable with the specified filter created by the CreateFilter function.

The filtering process is started from the end of the variable, and ends on the start of it, resulting in phase shifts introduced by a previous Filter() call to be eliminated.

Syntax: FilterReverse([variable_name], [filter_name])

Parameters

variable_name: the variable name what we want to filter
filter_name: the name of the filter what is in the variable list

Returns

Example

Filterx

In progress - Final

Obsolate

MovingWindowFilter

In progress - Final

Under implementation.

Works with variable. Moves a window (kernel) over the variable data, sample by sample from the half of the window size until the window last element doesn’t reach the variable last sample and filters the variable with the kernel.

Syntax: MovingWindowFilter([dst_var_name], [src_var_name], [kernel_name])

Parameters

dst_var_name: the name of the destination variable
src_var_name: the name of the source variable
kernel_name: the name of the filtering kernel. The kernel size must be odd.

Returns

ABSBandpassButterbase6thOrderZerophaseC

In progress

Works with variable. Description of the script

Syntax: ABSBandpassButterbase6thOrderZerophaseC(invarname,varnametostore, lbound, hbound)

HighpassButterbase6thOrderZerophase

In progress

Syntax: HighpassButterbase6thOrderZerophase(invarname, lbound)

BandpassButterbase6thOrderZerophase

In progress

Works with variable. Description of the given script

Syntax: BandpassButterbase6thOrderZerophase(invarname, lbound, hbound)

BandpassButterbase6thOrderZerophaseC

In progress

Syntax: BandpassButterbase6thOrderZerophaseC(invarname, varnametostore, lbound, hbound)

SQRBandpassButterbase6thOrderZerophaseC

In progress

for statement

In progress - Final - Checked_

For loop.

Syntax:

for([iterator_var_name], [from], [to], [step])
{
    [body]
};

Parameters

iterator_var_name: a variable name used as iterator
from: iterator init value
to: iterator stop value, inclusive
step: increment step

Returns

Example

for (i, 1, 20)
{
    FileOpen(
        CatStrings(C:\ninfea1.0.0\bin_format_ecg_and_respiration\, Iterator(i), .bin),
        CatStrings(data_, Iterator(i))
    );
    DataIn(CatStrings(data_, Iterator(i)), CatStrings(filtered_, Iterator(i)), 1 2 3);
    DataDelete(CatStrings(data_, Iterator(i)));

    CreateFilter(notch_filter, butt bs, 2 2048, 49.5 50.5, 0, 0);
    Filter(CatStrings(filtered_, Iterator(i)), notch_filter);
    FilterReverse(CatStrings(filtered_, Iterator(i)), notch_filter);

    CreateFilter(bandpass_filter, butt bp, 2 2048, 0.5 70, 0, 0);
    Filter(CatStrings(filtered_, Iterator(i)), bandpass_filter);
    FilterReverse(CatStrings(filtered_, Iterator(i)), bandpass_filter);

    DisplayData(CatStrings(filtered_, Iterator(i)));
    SaveDataToFile(CatStrings(filtered_, Iterator(i)), CatStrings(C:\ninfea1.0.0\filtered\filtered_, Iterator(i), .bdf), 1000);
};

This script will perform batch filtering on a set of data located in the folder C:\ninfea1.0.0\bin_format_ecg_and_respiration\. The filenames are numbers, with an extension of .bin.

In order for this funtion to work you will need
- files like:
  - C:\ninfea1.0.0\bin_format_ecg_and_respiration\1.bin,
  - C:\ninfea1.0.0\bin_format_ecg_and_respiration\2.bin etc.
- a folder C:\ninfea1.0.0\filtered\

GenerateModulatedECG

Works with variable. Creates an ECG signal with a number of samples in a given sampling rate and frequency, and stores into the variable list with the given name. In the number_of_samples_list and sample_rate_list you may provide a single number, or a list of numbers separated by spaces. The size of this two lists must be equal, and the size of the lists determine the number of channels.

Syntax: GenerateModulatedECG([out_data_name], [number_of_samples_list], [sample_rate_list], [simulation_params], [qrs_params]) .Parameters

out_data_name: the variable name where we store the sine wave
number_of_samples_list: a list containing the number of samples for each channel
sample_rate_list: a list containing the sampling rates of the sine waves
simulation_params and qrs_params:

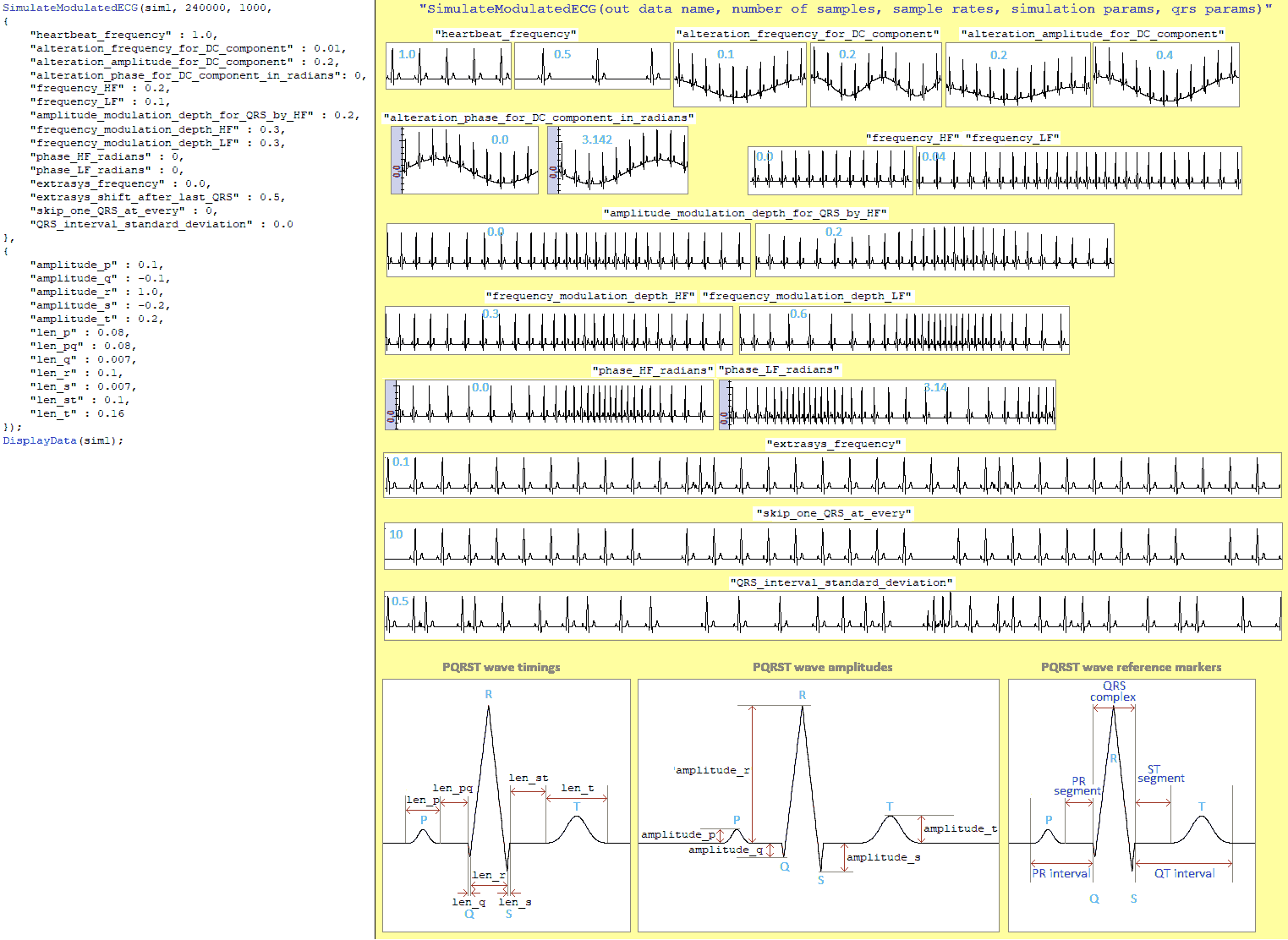

Generation parameters

Returns

Examples

Regular ECG signal

GenerateModulatedECG(s1, 240000, 1000,
{
    "heartbeat_frequency" : 1.0,
    "alteration_frequency_for_DC_component" : 0.0,
    "alteration_amplitude_for_DC_component" : 0.0,
    "alteration_phase_for_DC_component_in_radians": 0,
    "frequency_HF" : 0.0,
    "frequency_LF" : 0.0,
    "amplitude_modulation_depth_for_QRS_by_HF" : 0.0,
    "frequency_modulation_depth_HF" : 0.0,
    "frequency_modulation_depth_LF" : 0.0,
    "phase_HF_radians" : 0,
    "phase_LF_radians" : 0,
    "extrasys_frequency" : 0.0,
    "extrasys_shift_after_last_QRS" : 0.0,
    "skip_one_QRS_at_every" : 0,
    "QRS_interval_standard_deviation" : 0.0
},
{
    "amplitude_p" : 0.1,
    "amplitude_q" : -0.1,
    "amplitude_r" : 1.0,
    "amplitude_s" : -0.2,
    "amplitude_t" : 0.2,
    "len_p" : 0.08,
    "len_pq" : 0.08,
    "len_q" : 0.007,
    "len_r" : 0.1,
    "len_s" : 0.007,
    "len_st" : 0.1,
    "len_t" : 0.16
});
DisplayData(s1);

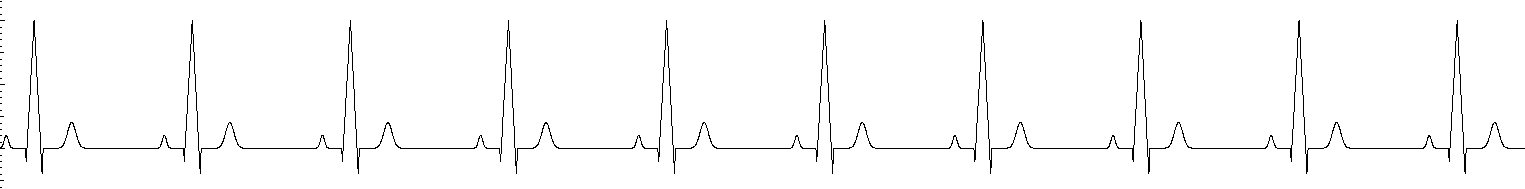

Generated ECG

Sine curve with 2 channels and multiple modulations

GenerateModulatedECG(s1, 240000 240000, 1000 1000,
{
    "heartbeat_frequency" : 1.0,
    "alteration_frequency_for_DC_component" : 0.01,
    "alteration_amplitude_for_DC_component" : 0.2,
    "alteration_phase_for_DC_component_in_radians": 0,
    "frequency_HF" : 0.2,
    "frequency_LF" : 0.1,
    "amplitude_modulation_depth_for_QRS_by_HF" : 0.2,
    "frequency_modulation_depth_HF" : 0.3,
    "frequency_modulation_depth_LF" : 0.3,
    "phase_HF_radians" : 0,
    "phase_LF_radians" : 0,
    "extrasys_frequency" : 0.0,
    "extrasys_shift_after_last_QRS" : 0.5,
    "QRS_interval_standard_deviation" : 0.0,
    "skip_one_QRS_at_every" : 0
},
{
    "amplitude_p" : 0.1,
    "amplitude_q" : -0.1,
    "amplitude_r" : 1.0,
    "amplitude_s" : -0.2,
    "amplitude_t" : 0.2,
    "len_p" : 0.08,
    "len_pq" : 0.08,
    "len_q" : 0.007,
    "len_r" : 0.1,
    "len_s" : 0.007,
    "len_st" : 0.1,
    "len_t" : 0.16
});
DisplayData(s1);

Generated ECG

GetDataName

In progress - Final

Obsolate. Works with data. This function always returns with the DATASERIES0 string.

Syntax: GetDataName([data_index])

Parameters

data_index: the index of the data you are looking for in the data list.

Returns

Returns with the DATASERIES0 string.

GetVal

In progress - Final

Works with variable. This function gets the sample data in the specified position (x and y coordinates) from the variable and it returns as a string. The x and y coordinates start from 0.

QUESTION: There are no bounds checks in the x and y coordinates. Implement it?

Syntax: GetVal([src_var_name], [x_coord], [y_coord])

Parameters

src_var_name: the name of the variable from which we want to extract the given data
x_coord: the x coordinate of the given data, this is the channel index. The indexing starts from 0.
y_coord: the y coordinate of the given data, this is the sample index of the data. The indexing start from 0.

Returns

It returns with the specified data as a string (3.1415926).

GetVarName

In progress - Final

Works with variable. The function returns the given variable name as a string.

Syntax: GetVarName([src_var_name])

Parameters

src_var_name: the name of the variable

Returns

Returns the variable name as a string (DATA15).

GetXVals

In progress - Final

Works with variable. This function returns with the indexes from the source variable’s first channel which are greater than the specified value.

QUESTION1: only the > condition is implemented. Implement other conditions as well (<, =, >=, ⇐, !=)? QUESTION2: the second value is not in use. Implement to use as an upper limit in the condition?

Syntax: GetXVals([dst_var_name], [src_var_name], [condition], [value1], [value2])

Parameters

dst_var_name'': the name of the destination variable
src_var_name: the name of the source variable
condition: must be >
value1: the minimum value, we are looking for values greater than this in the first channel of the source variable. The minimum value is exclusive.
value2: not used

Returns

Here is the return value

Hanning

In progress - Final

Works with variable. Makes a Hann window with the given samples number.

Syntax: Hanning([output_var_name], [samples])

Parameters

output_var_name: the name of the output variable
samples: the number of the samples in the output variable

Returns

if statement

In progress - Final - Checked_

We could make a branching with the if() script function. It has a condition and a body. If the condition is true it evaluates the body of the if() script function. Don’t forget the ; from the end of the body part.

Syntax:

if([condition])
{
    [body]
};

Parameters

condition: this is a condition
body: evaluate this if the condition is true

Returns

Example

CreateVector(data_1, 10);
CreateVector(data_2, 10);
if(1)
{
    DisplayData(data_1);
};
if(0)
{
    DisplayData(data_2);
};

Parameters

first_data_name: the name of the first data name we want to compare
second_data_name: the name of the second data name we want to compare

Returns

returns a text 1 if the two data is equal and 0 if not.

Example

CreateVector(vector_1, 10);
CreateVector(vector_2, 10);
DisplayData(vector_1);
DisplayData(vector_2);
CreateSine(sinewave, 10000, 1000, 10);
if(IsEqual(vector_1, vector_2))
{
    DisplayData(sinewave);
};

In this example will display the sine wave, because the two data is equal.

LoadKrit

In progress

Syntax: LoadKrit(outdataname, critfilename)

Mean

Calculates the mean of a variable. The mean is calculated for all the channels, outputting a new variable containing number of channels mean values.

Syntax: Mean([mean_var_name], [src_var_name])

Parameters

mean_var_name: the output variable name
src_var_name: the source variable name

Returns

Markers

AddMarker

In progress - Final

Works with variable. Adds a single marker to a variable.

Syntax: AddMarker([in_var_name], [a_start], [a_length], [a_label], [a_channel_index], [a_color], [a_id])

Parameters

in_var_name: the name of the input variable
a_start: the start value of the marker in horiyontal units.
a_length: length of the marker in horiyontal units.
a_label: optional
a_channel_index: optional
a_color: optional
a_id: optional

Returns

GetMarkerStart

In progress - Final

Works with variable. Adds a single marker to a variable.

Syntax: GetMarkerStart([var_name], [marker_index])

Parameters

var_name: the name of the input variable
marker_index: index of marker in the marker list.

Returns

start value in horizontal units

GetMarkerLength

In progress - Final

Works with variable. Adds a single marker to a variable.

Syntax: GetMarkerLength([var_name], [marker_index])

Parameters

var_name: the name of the input variable
marker_index: index of marker in the marker list.

Returns

length of the marker in horizontal units

GetMarkerChannel

In progress - Final

Works with variable. Adds a single marker to a variable.

Syntax: GetMarkerChannel([var_name], [marker_index])

Parameters

var_name: the name of the input variable
marker_index: index of marker in the marker list.

Returns

channel index of marker

PutTMarkersOnValues

In progress - Final

Works with variable. In the given input variable put vertical markers on the given values.

Syntax: PutTMarkersOnValues([in_var_name], [values])

Parameters

in_var_name: the name of the input variable
values: the list of the values where you want to add markers. The list must be a space separated list.

Returns

Example

CreateVector(data, 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1);
Cat(data,data);
AddMarker(data, 5, 18, "a_label", 0, 100, some_id);
UserInput(data,fit_width);
Extract(data, data2, GetMarkerStart(data, 0), GetMarkerLength(data, 0));
DisplayData(data2,fit_width);
DisplayData(data,fit_width);
DisplayData(manage_windows, tile_horizontally);

MeanSpectrum

In progress - Final

Works with variable. Creates a spectrum of the variable for each channel channel using the Fast Fourier transformation.

The spectrum will have its size half of the input size +1, the first element being the DC component, whilst the last element the Nyquist component.

Syntax: MeanSpectrum([src_var_name], [dst_var_name], [number_of_horizontal_units], [number_of_fft_horizontal_units], [spectrum_presentation])

Parameters

src_var_name: the input variable name what we want to analyze
dst_var_name: the output variable name where we store the analyzed values
number_of_horizontal_units: a list with numbers of horizontal units. The input data will be sliced to lengths corresponding to this value.
number_of_fft_horizontal_units: a list with numbers the fast Fourier transformation will really be performed on, in horizontal units. It may be equal to the previous parameter, or higher. Providing a higher value will increase the resolution of the spectrum).
spectrum_presentation: the way the spectrum will be presented.
1. Spectrum presentation settings:
ampn Normalized amplitude. The units will match the units of the fft’s input. The output is the normalized square of the power spectrum density.
amp Amplitude without normalization. The units will match the units of the fft’s input. The output is the square of the power spectrum density.
psd Power spectrum density. Units will be fft_input_vertical_units ^ 2 * fft_input_horizontal_units
psdn Power spectrum density normalized. Units will be fft_input_vertical_units ^ 2 * fft_input_horizontal_units
dbi Decibels 20.0 * log10(amp). Units will be decibels: log10(fft_input_vertical_units).

Returns

Processing steps:

the input data will be sliced into pieces of number_of_horizontal_units
a hanning windowing will be performed on all the slices, having the input windowed in a nearest power of 2 sized memory space corresponding to number_of_fft_horizontal_units
* an FFT transformation will be performed on all the slices
power spectrum density and normalization
averaging of slices

Example

CreateSine(sinewave, 10000 10000, 1000 1000, 100 30 10);
MeanSpectrum(sinewave,
             spectrain,
             CopyForAllChannels(sinewave, 1),
             CopyForAllChannels(sinewave, 1));
DisplayData(sinewave, fit_width);
DisplayData(spectrain, fit_width);

Mean Spectrum

Median

Calculates the median of a variable. The median is calculated for all the channels, outputting a new variable containing number of channels median values.

Syntax: Median([median_var_name], [src_var_name])

Parameters

median_var_name: the output variable name
src_var_name: the source variable name

Returns

mfilter_rev_bp

In progress

Syntax: mfilter_rev_bp(indataname’the input data)'

mutato

In progress

Syntax: mutato(spavgpos1, spavgneg1, spavgpos2, spavgneg2, spcountandswrel)

Mutato2

In progress

Syntax: Mutato2(spavgpos1, spavgneg1, spavgpos2, spavgneg2, spcountandswrel)

NewFileDataBasedOnData

In progress - Final

Works with data. Creates a new file based on the given template data and will be displayed on the GUI.

Syntax: NewFileDataBasedOnData([dst_data_name], [template_data_name], [window_milliseconds], [fileCodec_type], [filename], [channels])

Parameters

dst_data_name: the name of the output data
template_data_name: the name of the input template data
window_milliseconds: the window size in milliseconds
fileCodec_type: set the file codec type (4: bdf). See [DataTypes].
filename: the name of the output file with the file extension corresponding to the specified codec type.
channels: optional, by default is every channel in the input template data

Returns

NewMemoryData

In progress - Final

Works with data. Creates a data with the given parameters in the memory. You have to set the number of channel, the sample rates per channel and the horizontal unit. After it creates the data will be displayed on the GUI.

Syntax: NewMemoryData([dst_data_name], [nr_channels], [sample_rates], [nr_horizontal_units])

Parameters

dst_data_name: the name of the created data
nr_channels: the number of channels in the created data
sample_rates: the sample rates per channel. If you have more than 1 channel you have to set the sample rates for every channel. You can use space separated list
nr_horizontal_units: the number of horizontal units in each channel

Returns

OnDataChange

In progress - Final

Works with data. The program handles a map (key-value list). The program checks this list every 50ms and if the program find any data in this list it will be triggered. This function puts the given data as the key and puts it’s body as the value to this list.

Syntax:

OnDataChange([data_name])
{
[body]
};

Parameters

data_name: the name of the data what you want to add to the list as a key
body: function(s) what you want to run on the given data

Returns

Example

DataAq(6, COM5, 3360, 1 , 0 , 200, 4, FileName04.bdf, dataname);
OnDataChange(dataname)
{
    Spectrum_RT(dataname, 1, actual_spectrum);
    DisplayData(actual_spectrum, fit_width);
};

orsocounter

In progress

Works with variable.

Syntax: orsocounter([in_var_name], [spswkrits] , [spindx], [spcountandswrel])

Parameters

in_var_name: the description of the parameter
spswkrits: the description of the parameter…
spindx: the description of the parameter…
spcountandswrel: the description of the parameter…

Returns

Orsocounter2

In progress

oszamlesf

In progress

Oversample

In progress

PutTwoSpindleTMarkers

In progress - Final

Obsolate Works with variable.

Syntax: PutTwoSpindleTMarkers([in_var_name], [RMDSGExtracted], [intersections])

Parameters

in_var_name: the name of the input varialbe
RMDSGExtracted: the name of the…
intersections: the list of…

Returns

RefineSpikes

In progress

RefreshDataWindow

In progress - Final

Works with data. Refreshes the data on the display window.

Syntax: RefreshDataWindow([data_name], [full_change])

Parameters

data_name: the data what we want to refresh in a window
full_change: optional, the default is false. If true, the magnifier is approximated, and the scrollbar values are reset. If the dimensions (either horizontal or vertical) of the data are changed, it needs to be set to true at least once in order for the data to display correctly. If only the values are changed, a value of false should do.

Returns

RowMean

In progress

RowMeanE

In progress

SaveDataToFile

In progress - Final

Works with data. Saves a given data to a file in a given window in milliseconds. The file type could be .edf, .bdf and .dat, depends on the chosen file codec type. The default file codec type is BDF. If you specify another file_codec_type, the corresponding file extension must be specified in the file_name. See [DataTypes].

Syntax: SaveDataToFile([var_name], [file_name], [window_milliseconds], [file_codec_type])

Parameters

var_name: the variable name what we want to save to file
file_name: the file name where we want to save the
window_milliseconds: the time window what we want to save to the file in milliseconds
file_codec_type: Optional, the default file codec type is 4 which is the BDF. set the file codec type (1: EDF). See [DataTypes].

Returns

SetStopOnFirstError

In progress - Final

By default the script runner stops when the first error occurs. With this function we can modify this behavior to not stop running when the first error occurs.

Syntax: SetStopOnFirstError([bool])

Parameters

bool (true/false): the default is true. If you call this function with false the script continues to run the script even after the first error. The valid parameter can only be true or false.

Returns

Spectrums

FullSpectrum

In progress - Final

Works with variable. Creates a spectrum of the variable, resulting in a new 2D heatmap data per channel.

Every spectrum will have its size half of the input size +1, the first element being the DC component, whilst the last element the Nyquist component.

The resulting data will have a size corresponding to the length of the input divided by the number of units the data will be sliced into.

The horizontal units will match the horizontal units of the input data, the vertical units will be the frequency, having each channel in the output data represent a frequency component.

Syntax: FullSpectrum([src_var_name], [dst_var_name], [number_of_horizontal_units], [frequency_list], [spectrum_presentation])

Parameters

src_var_name: the input variable name what we want to analyze
dst_var_name: the output variable name, or a prefix to it, where we store the analyzed values. The whole name of the output variables are the dst_var_name suffixed with the index of the channel, counted from 0. If the name is dst_name and the input variable has 2 channels, the output variables will be dst_name0 and dst_name1. If the input has one channel only, no suffix will be added.
number_of_horizontal_units: a list with numbers of horizontal units. The input data will be sliced to lengths corresponding to this value. No overlapping is supported currently.
frequency_list: the start and the stop frequencies. Between these frequencies the result will be presented, and frequency components outside of this range will be dropped.
spectrum_presentation: the way the spectrum will be presented.
1. Spectrum presentation settings:
ampn Normalized amplitude. The units will match the units of the fft’s input. The output is the normalized square of the power spectrum density.
amp Amplitude without normalization. The units will match the units of the fft’s input. The output is the square of the power spectrum density.
psd Power spectrum density. Units will be fft_input_vertical_units ^ 2 * fft_input_horizontal_units
psdn Power spectrum density normalized. Units will be fft_input_vertical_units ^ 2 * fft_input_horizontal_units
dbi Decibels 20.0 * log10(amp). Units will be decibels: log10(fft_input_vertical_units).

The output is normalized such as an 1mV amplitude sine wave in the input will result in an 1mV peak in the output.

Returns

Processing steps:

the input data will be sliced into pieces of number_of_horizontal_units
a hanning windowing will be performed on all the slices, having the input windowed in a nearest power of 2 sized memory space corresponding to number_of_fft_horizontal_units
* an FFT transformation will be performed on all the slices
power spectrum density and normalization
every spectrum resulted corresponding to a slice, will be inserted into the output data

Example with one single channel data

CreateSine(sin, 10000, 1000, 106 26 6);
FullSpectrum(sin, spec, CopyForAllChannels(sin, 1), 0 150);
DisplayData(spec, ,2D_map);

Example with multiple channel data

CreateSine(sin, 10000 10000, 1000 1000, 106 26 6);
FullSpectrum(sin, spec_, CopyForAllChannels(sin, 1), 0 150);
DisplayData(spec_0, ,2D_map);
DisplayData(spec_1, ,2D_map);

Note: In case of multiple channels, there will be no data named exactly as given in the parameter. Multpile output data objects will be created, with indexed names.

Spectrogram

In progress - Final

Works with variable. Creates a spectrogram of the variable, resulting in a new 2D heatmap data per channel.

The resulting data will have a size of the input divided by the length of the block_size the data will be sliced into.

Every spectrum will have its size half of the block_size +1, the first element being the DC component, whilst the last element the Nyquist component.

The horizontal units will match the horizontal units of the input data, the vertical units will be the frequency, having each channel in the output data represent a frequency component.

Syntax: Spectrogram([src_var_name], [src_channel], [dst_var_name], [a_block_len], [spectrum_bounds], [overlapping], [spectrum_presentation])

Parameters

src_var_name: the input variable name what we want to analyze
src_channel: the input channel index to analyze
dst_var_name: the output variable name, or a prefix to it, where we store the analyzed values. The whole name of the output variables are the dst_var_name suffixed with the index of the channel, counted from 0. If the name is dst_name and the input variable has 2 channels, the output variables will be dst_name0 and dst_name1. If the input has one channel only, no suffix will be added.
a_block_len: a numbers in horizontal units. The input data will be sliced to lengths corresponding to this value.
overlapping: Percentage value setting the percentage the slices will overlap (example 25, 50, 75, 87.5).
frequency_list: the start and the stop frequencies. Between these frequencies the result will be presented, and frequency components outside of this range will be dropped.
spectrum_presentation: the way the spectrum will be presented.
1. Spectrum presentation settings:
ampn Normalized amplitude. The units will match the units of the fft’s input. The output is the normalized square of the power spectrum density.
amp Amplitude without normalization. The units will match the units of the fft’s input. The output is the square of the power spectrum density.
psd Power spectrum density. Units will be fft_input_vertical_units ^ 2 * fft_input_horizontal_units
psdn Power spectrum density normalized. Units will be fft_input_vertical_units ^ 2 * fft_input_horizontal_units
dbi Decibels 20.0 * log10(amp). Units will be decibels: log10(fft_input_vertical_units).

The output is normalized such as an 1mV amplitude sine wave in the input will result in an 1mV peak in the output.

Returns

Processing steps:

the input data will be sliced into pieces of a_block_len
a hanning windowing will be performed on all the slices, having the input windowed in a nearest power of 2 sized memory space corresponding to number_of_fft_horizontal_units
* an FFT transformation will be performed on all the slices
power spectrum density and normalization
every spectrum resulted corresponding to a slice, will be inserted into the output data

Example

CreateSine(sinewave, 1000, 1000, 30);
DisplayData(sinewave);
for (sine_frequency, 30, 100, 2){
    AppendSine(sinewave, 1000, Iterator(sine_frequency));
};
RefreshDataWindow(sinewave, true);
DataIn(sinewave, sinewave_, 1);
Spectrogram(sinewave_, 0, fullspectrum, 1, 5 200, ,ampn);
DisplayData(fullspectrum,fit_width,2D_map);
Spectrogram(sinewave_, 0, fullspectrum2, 1, 5 200, 87.5,ampn);
DisplayData(fullspectrum2,fit_width,2D_map);
DisplayData(manage_windows, tile_horizontally);

Spectrum_RT

In progress

SpectrumTimeline_RT

In progress

SpikeDetect

In progress - Final

Works with variable. Detects spikes according to the specified criteria. You have to set two criteria, an amplitude value and a horizontal value. If the samples are above the specified amplitude in the specified width (horizontal value) then in the output variable indicates sample with an index that meets the criteria.

Syntax: SpikeDetect([out_var_name], [in_var_name], [kriter], [spikelen])

Parameters

out_var_name: the name of the output variable
in_var_name: the name of the input variable, where you want to detect spikes
kriter: the
spikelen:

Returns

SpindleCount

In progress

SQR_Inplace

Work with variable. Squares all sample values in a variable.

Syntax: SQR_Inplace([variable_name])

Parameters

variable_name: the name of the variable

Returns

Example

SQRT_Inplace

In progress - Final

Works with variable. Calculates its square roots for all sample values in a variable.

Syntax: SQRT_Inplace(var_name)

Parameters

var_name: the name of the variable

Returns

STDev

Calculates the standard deviation of a variable and the mean of that variable. The standard deviation is calculated for all the channels, outputting a new variable containing number of channels standard deviation values.

Syntax: STDev([stdev_var_name], [src_var_name], [mean_var_name])

Parameters

stdev_var_name: the output variable name
src_var_name: the source variable name
mean_var_name: the mean variable name

Returns

Substract

In progress - Final

Works with variable. Subtracts one variable from the other.

Syntax: Substract(minuend_var, subtrahend_var)

Parameters

minuend_var: the name of the variable from which we subtract the other the variable
subtrahend_var: the name of the variable we subtract from the other variable

Returns

swindxdetect

In progress

SystemExit

Exit from the whole program.

Syntax: SystemExit(0)

Parameters

Returns

SystemInterval

SystemInterval function may have a body. The body may contain a script. The script in the body will be called periodically.

If the function does not have a body, a previously defined interval with the same name will be deleted (regardless of the interval’s period).

Syntax:

SystemInterval([interval_name], [interval_millisecs])
{
    ...
};

Example

CreateVector(data, 11);
DisplayData(data, fit_width,value_list);
SystemInterval(int1, 1000)
{
    AlterSignal(data, 12);
    RefreshDataWindow(data, fit_width,value_list);
    SystemInterval(int1);
};

Parameters

interval_name: the name of the interval
interval_millisecs: the interval’s period in milliseoconds

Returns

ToString

In progress - Final

Works with varialbe. Creates a space separated list from the data of the first channel of the input variable and returns it.

Syntax: ToString([input_var_name])

Parameters

input_var_name: the name of the input variable

Returns

a text which is a space separated data list from first channel of the input variable

Example

CreateVector(vec, 1 2 3 4 5);
ToString(vec);

The return text: "1.0000000 2.0000000 3.0000000 4.0000000 5.0000000"

Transpose

In progress - Final - Checked_

Works with variable. Transposes a source variable into a destination variable. The start and stop parameters are optional, and if you want to use them you need to set both of them. If you only set the source and the destination variable the Transpose function will transpose the whole data in the source to the destination variable. The indexing starts from 0. The start parameter indexes are inclusive and the stop parameter indexes are exclusive.

Syntax: Transpose([dst_var_name], [src_var_name], [src_start_channel_index], [src_start_element_index], [src_stop_channel_index], [src_stop_element_index])

Parameters

dst_var_name: the name of the destination variable
src_var_name: the name of the source variable
src_start_channel_index: Optional by default this is the first channel. In the source variable this is the start number of the channels what we want to transpose to the destination variable.
src_start_element_index: Optional by default this is the first element in the channel(s). In the source variable this is the start number of the element in a channel what we want to transpose to the destination variable.
src_stop_channel_index: Optional by default this is the last channel. In the source variable this is the last channel number exclusively what we want to transpose to the destination variable.
src_stop_element_index: Optional by default this is the last element in the channel(s). In the source variable this is the last element in a channel exclusively what we want to transpose to the destination variable.

Returns

Example We have a variable with 2 channels and each channel have 4 values.

Source variable:

Element index:         0  1  2  3
Channel 1 (index 0): [10 11 12 13]
Channel 2 (index 1): [20 21 22 23]

Script:

Transpose(dst, src, 0, 0, 2, 2,)

Destination variable:

Element index:         0  1
Channel 1 (index 0): [10 20]
Channel 2 (index 1): [11 21]

Example

CreateVector(vec1, 1 2 3 4 5 6);
Transpose(vec2, vec1);
DisplayData(vec1, fit_width, value_list);
DisplayData(vec2, fit_width, value_list);

Note: surface views are working slowly if the data has thousands of channels (rows).

TriggerDataChanged

In progress - Final

Obsolate Description of the given script

Syntax: TriggerDataChanged([data_var_name])

Parameters

data_var_name: the name of the variable

Returns

TruncateSTDev

Truncates a signal based on the signal’s median, its standard deviation, and a ratio. All the channels of the signal will be truncated in-place (no new output variable will be created).

All values

above madian + standard deviation * ratio will be truncated to madian + standard deviation * ratio
and all bellow -1 * (madian + standard deviation * ratio) will be truncated to -1 * (madian + standard deviation * ratio).

The function can be used to remove artifacts from a signal.

Before using this functionality the signal is likely to be high-pass filtered, like in the example bellow:

Example

FileOpen(Recording_01.bdf, ekgsignaldata);
DataIn(ekgsignaldata, ekgsignal);
CreateFilter(bandpass_filter, butterworth bp, 2 2000, 5 30);
Filter(ekgsignal, bandpass_filter);

Mean(ekg_mean, ekgsignal);
Median(ekg_median, ekgsignal);
STDev(ekg_stdev, ekgsignal, ekg_mean);
TruncateSTDev(ekgsignal, ekg_median, ekg_stdev, 0.2);

DisplayData(ekgsignal);

TruncateSTDev

Syntax: STDev([variable_name], [median_variable_name], [stdev_var_name], [ratio])

Parameters

variable_name: input and output
median_variable_name:
stdev_var_name:
ratio:

Returns

UserInput

In progress - Final

Works with varialbe. Display the input variable in a separate window and set active that window. This stops the program execution until you close the opened window.

While the window is open, markers on the window can be changed interactively. The changed markers can be used then to change the parameters of the further processing.

Syntax: UserInput([input_var_name], …)

Parameters

input_var_name: the name of the input variable
…: same options as the function DisplayData()

Returns

Example

xcorr

In progress

Works with variable. The function returns some kind of difference or the correlation between the entries of the input variable and the kernel with the given method.

The following methods can be used:

EUCL: Euclidian distance
SOSD: Sum of squared distances
TXCB: Manhattan / Taxicab / Cityblock
ANGL: Angle between vectors
PCC (defalut): Pearson correlation
CONV: Convolution

Syntax: xcorr([dst_var_name], [src_var_name], [kernel_name], [method])

Parameters

dst_var_name: the name of the output variable
src_var_name: the name of the input variable on which we execute the function
kernel_name: the name of the kernel
method (optional): the name of the specified method, the default is PCC. For the methods see the description above.

Returns

ImpArtCanc

Works with variable. The function eliminates big impulse artefacts on each channel of the signal, by replacing the samples that are bigger than the treshold with the mean of the channel.

Syntax: ImpArtCanc([src_var_name])

Parameters

src_var_name: the name of the variable on which we execute the function

Returns

ICA

Works with variable. Independent component analysis. From an n channel signal it will create a new variable with n independent component. It uses the fixed point algorithm of Hyvarinen with deflationary ortogonalization and hyperbolic cosine as contrast function. It uses the random numbers provided in the random_var_name variable as the initial values, when calculating the demixing matrix. The random values should be between -0.5 and 0.5 and the variable should contain at least n*n elements.

Syntax: ICA([src_var_name], [dst_var_name], [random_var_name])

Parameters

src_var_name: the name of the input variable on which we execute the function
dst_var_name: the name of the output variable
random_var_name: the name of a variable with random numbers for initialization

Returns

Whitening

Works with variable. Performs signal whitening. It includes the centering of the signal and the eigen value decomposition of it’s covariance matrix. The whitening matrix will be the diagonal matrix (containing the square roots of the eigenvalues) multiplied by the transposed eigenvector matrix. The channels of the resulting variable will be uncorrelated and their variances equal unity.

Syntax: Whitening([src_var_name], [dst_var_name])

Parameters

src_var_name: the name of the input variable on which we execute the function
dst_var_name: the name of the output variable

Returns

ToComplex

Works with variable. Converts the signal to complex form. The output will be twice as long as the input. The elements with even index will hold the real part and the elements with odd index will hold the imaginary part of the number. As this function converts real signal to complex form the imaginery parts will be 0 for all elements.

Syntax: ToComplex([src_var_name], [dst_var_name])

Parameters

src_var_name: the name of the input variable. Signal in real form.
dst_var_name: the name of the output variable. Signal in complex form.

Returns

ToReal

Works with variable. Converts the signal from complex form to real form. The output will be half as long as the input. The function ignores the imaginary part of the complex numbers and retrieves only the real parts.

Syntax: ToReal([src_var_name], [dst_var_name])

Parameters

src_var_name: the name of the input variable. Signal in complex form.
dst_var_name: the name of the output variable. Signal in real form.

Returns

FastFourierTransform

Works with variable. Calculates the fast fourier transform of the input using the FFTW libary. The input has to be in complex form, and the output will be in complex form too.

Syntax: FastFourierTransform([src_var_name], [dst_var_name], [sign])

Parameters

src_var_name: the name of the input variable in complex form.
dst_var_name: the name of the output variable in complex form.
sign: sign of the FFT. Forward FFT: -1. Backward FFT: 1.

Returns

PaddingSpectrum

Works with variable. Takes a double sided spectrum (complex form) and extends it with 0s in the higher frequency range. The ratio of the extension will depend on the rate input.

Syntax: PaddingSpectrum([src_var_name], [dst_var_name], [rate])

Parameters

src_var_name: the name of the input variable in complex form.
dst_var_name: the name of the output variable in complex form.
rate: ratio of the number of new and old samples. It has to be equal or bigger than 2.

Returns

Interpolation

Works with variable. Uses fourier interpolation to create a more detailed signal. It calls the following functions on temporary variables: ToComplex, FastFourierTransform, PaddingSpectrum, FastFourierTransform, ToReal. The output variable will be rate times as long as the input variable.

Syntax: Interpolation([src_var_name], [dst_var_name], [rate])

Parameters

src_var_name: the name of the input variable.
dst_var_name: the name of the output variable.
rate: ratio of the new and the old sampling frequency. It has to be equal or bigger than 2.

Returns

SelectBestChannel

Works with variable. Chooses the best channel for maternal QRS detection, based on a priori knowledge on its pseudo-periodicity. It applies a derivative filter on the signal, with a 16 ms long window, then a moving average filter, with a 9 ms long window. Then it calculates the mean of maximum values of each channel on windows of 8 s, 2 s, and 0.2 (mD6, mD2, mD02). The quality factor of each channel will be determined with the following equation: -mD2 / (mD02 + mD8). The best channel will be the one with the smallest quality value. The best channel from the original input variable will be copied into the output variable.

Syntax: SelectBestChannel([src_var_name], [dst_var_name])

Parameters

src_var_name: the name of the input variable.
dst_var_name: the name of the output variable, with the best channel.

Returns

Centering

Works with variable. The function will modify each channel of the signal by subtracting the mean of the channel and dividing with the standard deviation. The resulting channels will have a mean of 0 and a standard deviation of 1.

Syntax: Centering([src_var_name])

Parameters

src_var_name: the name of the input variable. It will be modified, the resulting signal will be centered.

Returns

Squaring

Works with variable. The function will square each sample of each channel.

Syntax: Squaring([src_var_name])

Parameters

src_var_name: the name of the input variable. It will be modified, the resulting signal will be squared.

Returns

Normalize

Works with variable. The function will normalize each channel of the signal, by dividing every sample with the maximum of the channel.

Syntax: Normalize([src_var_name])

Parameters

src_var_name: the name of the input variable. It will be modified, the resulting signal will be normalized.

Returns

Divide

Works with variable. The function will divide each sample of each channel with the divisor.

Syntax: Divide([src_var_name, divisor])

Parameters

src_var_name: the name of the input variable. It will be modified, the resulting signal will be normalized.
divisor: divide with this.

Returns

CustomFilter

Works with variable. The function will create a variable copying the numbers from the denominator to the first channel numerator to the first channel of the filter variable, and the numbers from the numerator to the second channel of the filter. This function works also without denominator input. In this case the first channel will contain zeros.

Syntax: CustomFilter([filt_var_name, numerator, denominator])

Parameters

filt_var_name: the name of the output variable.
numerator: the list of the values of the numerator.
denominator: the list of the values of the denominator.

Returns

DerivativeFilter

Works with variable. The function will create a temporary derivative filter, and apply that on the input variable. Filter and FilterReverse functions will be used on the input variable.

Syntax: DerivativeFilter([src_var_name])

Parameters

src_var_name: the name of the input variable.

Returns

MovingAverageFilter

Works with variable. The function will calculate the moving average of each channel of the given input. The length of the input will be win_length s long. If win_length is missing, the length of the window will be 0.15 s long.

Syntax: MovingAverageFilter([src_var_name, win_length])

Parameters

src_var_name: the name of the input variable.
win_length: the length of the moving window in s.

Returns

FindPeaks

Works with variable. The function will find the local maximums on each channels of the given variable. It will modify the input variable, replacing the samples that are peaks with 1, and the samples that are not peaks with 0. The local maximum will be calculated based on the derivative of the signal. The function will only find the local maximums with a height bigger than a minimum peak height, and with a minimum peak distance between each other.

Syntax: FindPeaks([src_var_name, peak_height, peak_distance])

Parameters

src_var_name: the name of the input variable.
peak_height: the minimum peak height will be calculated as the peak_height fraction of the biggest value of the channel. Default value: 7
peak_distance: the minimum peak distance in s. Default value: 0.2 s

Returns

CorrectPeaks

Works with variable. The function will correct the location of the peaks by searching for the maximum value of the signal in the win_length viscinity of the peaks. The peaks variable will contain 1 where a peak is found on the signal and 0 where there’s no peak.

Syntax: CorrectPeaks([src_var_name, peaks_var_name, win_length])

Parameters

src_var_name: the name of the input signal.
peaks_var_name: the name of the variable that contains the peaks detected on each channel.
win_length: length of the correction window in s. Default value: 0.08 s

Returns

CreateOutput

Works with variable. The function will create the output variable with 3 channel, containing the first channel of the signal, the maternal peaks and the fetal peaks. The channels of the peaks will contain 1 where a peak is found on the signal and 0 where there’s no peak.

Syntax: CreateOutput([src_var_name, mother_peaks_var_name, fetal_peaks_var_name, output_var_name])

Parameters

src_var_name: the name of the input variable.
mother_peaks_var_name: the name of the variable containing the maternal peaks.
fetal_peaks_var_name: the name of the variable containing the fetal peaks.
output_var_name: the name of the output variable.

Returns

DeleteChannel

Works with variable. The function will delete a channel of the variable defined in the index input. The index of the first channel is 0.

Syntax: DeleteChannel([src_var_name, index])

Parameters

src_var_name: the name of the input variable.
index: index of the channel to delete.

Returns

DownsamplePeaks

Works with variable. The function will determine the difference between the sampling frequencies of the long and short signals and modify the peaks variable. The peaks variable will contain the same peaks but on the smaller sampling frequency. Peaks are signaled with 1 while the non-peak samples are signaled with 0.

Syntax: DownsamplePeaks([long_var_name, short_var_name, peaks_var_name])

Parameters

long_var_name: the name of the variable containing the signal with the bigger sampling frequency.
short_var_name: the name of the variable containing the signal with the smaller sampling frequency.
peaks_var_name: the name of the input variable containing the peaks to downsample.

Returns

CreateMotherSignal

Works with variable. The function will create the mother signal from each channel of the input variable. It will create a matrix containing the QRS complexes defined in the peaks variable. Singular value decomposition will be performed in this matrix. The 3 strongest singular values will be kept, the others will be evaluated before rebuilding the signal. With this, the fetal peaks and the noises will be removed, and only the mother signal will remain.

Syntax: CreateMotherSignal([src_var_name, peaks_var_name, out_var_name])

Parameters

src_var_name: the name of the input variable containing the signal.
peaks_var_name: the name of the peaks variable containing the maternal peaks detected on the signal.
out_var_name: the name of the output variable.

Returns

QrsFDetection

Works with variable. The function will detect the fetal peaks on each channels of the input variable. The input signal should contain only the fetal QRS complexes, without the mother QRS complexes.

Syntax: QrsFDetection([src_var_name, maternal_peaks_var_name, out_var_name])

Parameters

src_var_name: the name of the input variable containing the signal.
maternal_peaks_var_name: the name of the peaks variable containing the maternal peaks detected on the signal.
out_var_name: the name of the output variable containing the fetal peaks.

Returns

SelectBestFChannel

Works with variable. The function will select the best channel from the fetal peaks variable. The peaks are signalled with 1, while the non-peak samples are 0.

Syntax: SelectBestFChannel([fetal_peaks_var_name, maternal_peaks_var_name, out_var_name])

Parameters

fetal_peaks_var_name: the name of the peaks variable containing the fetal peaks.
maternal_peaks_var_name: the name of the peaks variable containing the maternal peaks.
out_var_name: the name of the output variable containing the chosen fetal peaks channel.

Returns

CreateRandomVec

Works with variable. The function will create a variable. The variable will have 1 channel, with vec_length number of values randomly choosen from the [min_value, max_value) interval, using uniform distribution.

Syntax: CreateRandomVec([out_var_name, vec_length, min_value, max_value])

Parameters

out_var_name: the name of the output variable containing the random vector.
vec_length: the length of the random vector.
min_value: minimum random value.
max_value: maximum random value.

Returns
